Philips M8048A Disassembly

...

1.  Remove the two wcrews (Torx 20)

2. Remove handle and MMS holder. First, slide down, then tilt and slide out the MMS handle.

3. Remove long pins (4 pcs.) Use a flat head screwdriver.

Be careful not to break them.

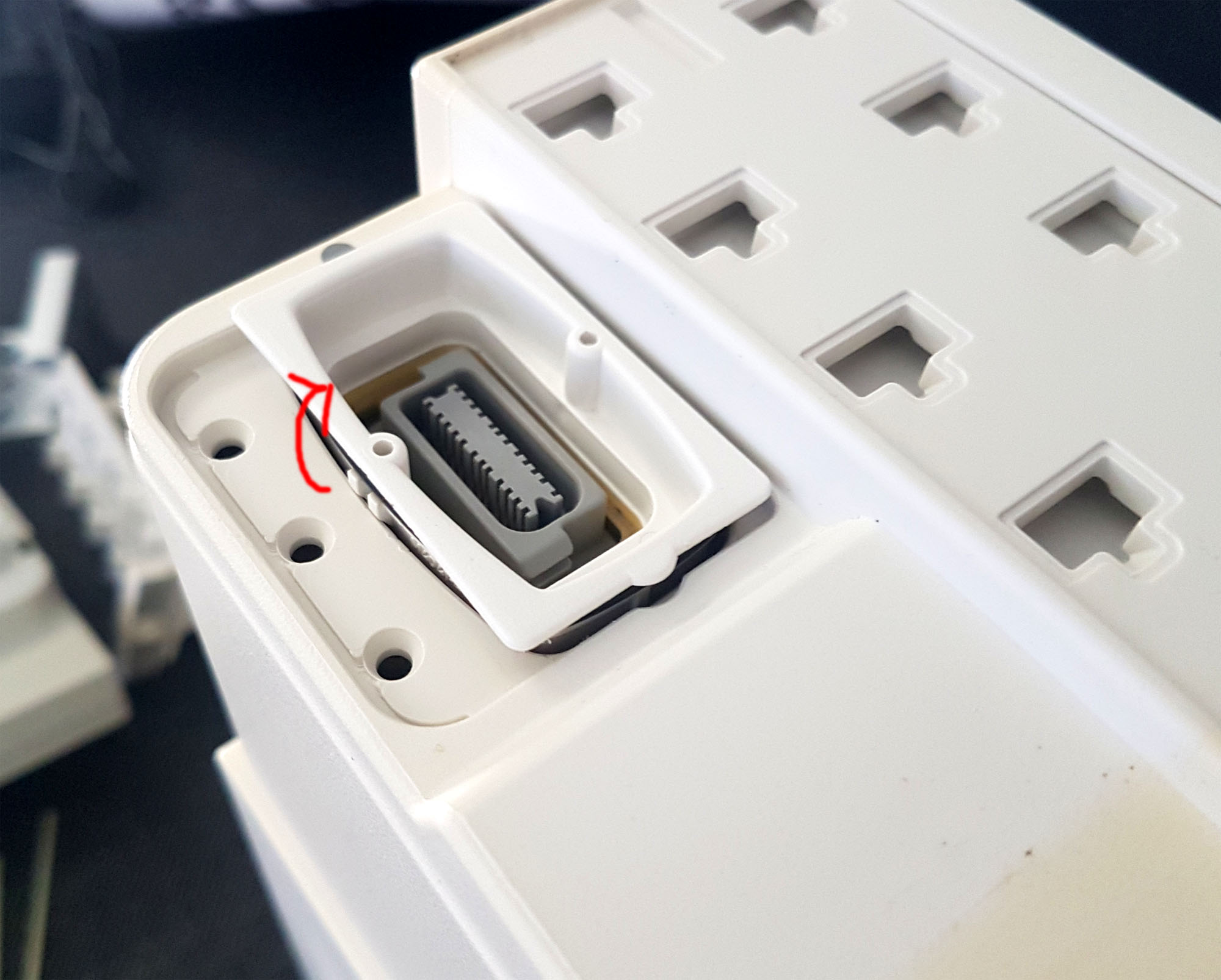

            4. Pry and remove the cover of MSL connector on both sides.

       Use flat head screwdriver.

5. Pull out the front part of the housing.
